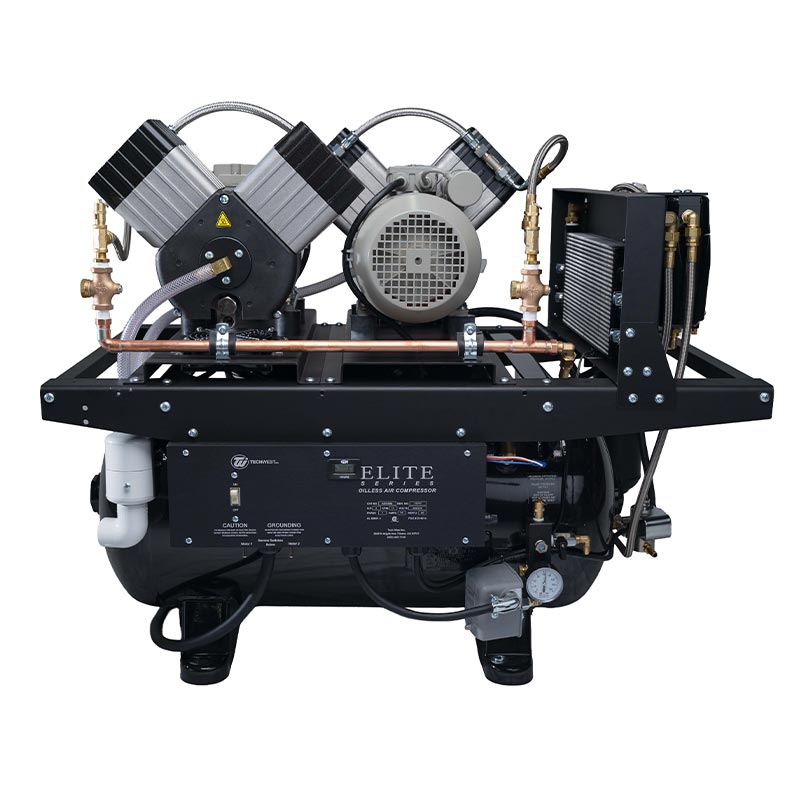

Tech West Elite ACO4D2 dual head oilless air compressor

Tech West

Tech West Elite ACO4D2 Oilless Air Compressor (5-7 users)

Brand
Tech West
Quote includes
Configuration review
Support
Installation and service options

Build your equipment quote

Add this item to your list.

Choose a configuration and quantity. You can keep shopping and send the full list together when you are ready.

  • Configuration reviewed before we quote
  • Installation and service options available
  • No online payment or purchase commitment
View your quote list
Product overview & specifications The ACO4D2 is the dual-head configuration in Tech West's Elite Series, rated for 5 to 7 simultaneous users. Two independent motors share the load, so the office is not down...

The ACO4D2 is the dual-head configuration in Tech West's Elite Series, rated for 5 to 7 simultaneous users. Two independent motors share the load, so the office is not down to nothing if one motor needs service.

This model

  • Simultaneous users: 5 to 7
  • Compressor heads: 2
  • Horsepower: 3
  • Output: 11 CFM
  • Tank: 20 gallons
  • Voltage: 208/230V

Why the Elite Series

  • Delivers 100 percent clean, dry air with energy-efficient, high-efficiency motors
  • Desiccant drying tanks engineered to reach ultra-low dew points around -40F
  • Each motor can operate independently, so your practice keeps running smoothly even if one motor is not running
  • Quiet, vibration-free operation
  • Proudly built in the USA

User rating means simultaneous demand. It is based on how many operatories may need air at the same time, not the total number of rooms. We confirm voltage, ventilation, mechanical room space and future growth before quoting.

Other Elite Series models

If this size is not the right fit, here is the rest of the line.

Model Users Heads HP CFM Tank gallons Voltage
ACO2S2 2-3 1 1.5 5.5 10 208/230
ACO4D2 5-7 2 3 11 20 208/230
ACO6T2 8-10 3 4.5 16.5 30 208/230

Warranty: Five years or 3,500 hours on the motor and two years on other components.

Need help before choosing?

We can look at the room, not just the equipment.

For mechanical rooms, replacements, imaging systems and complete offices, send the office address, space details, utilities and existing equipment. We will review it before replying.

Email equipment details
