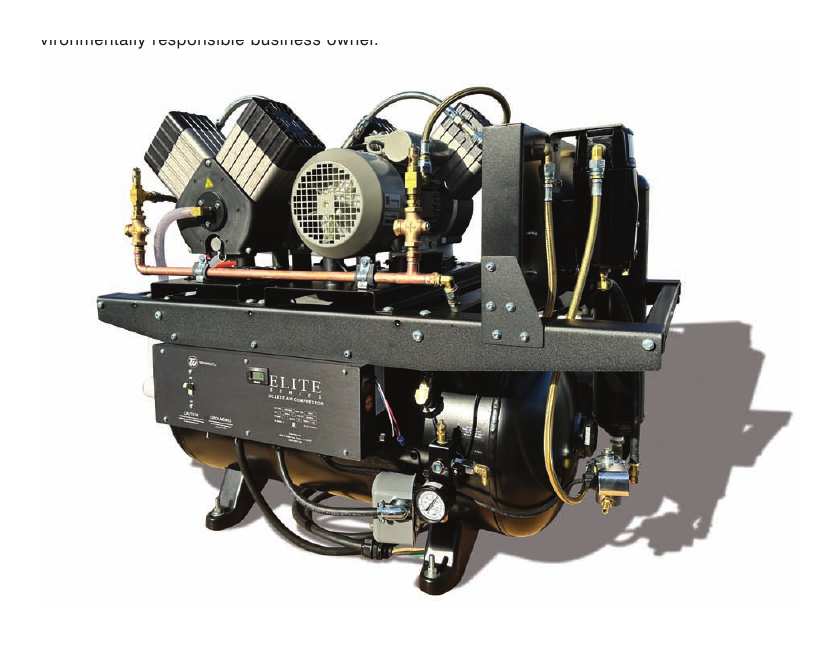

Tech West Elite Series oilless air compressor

Tech West

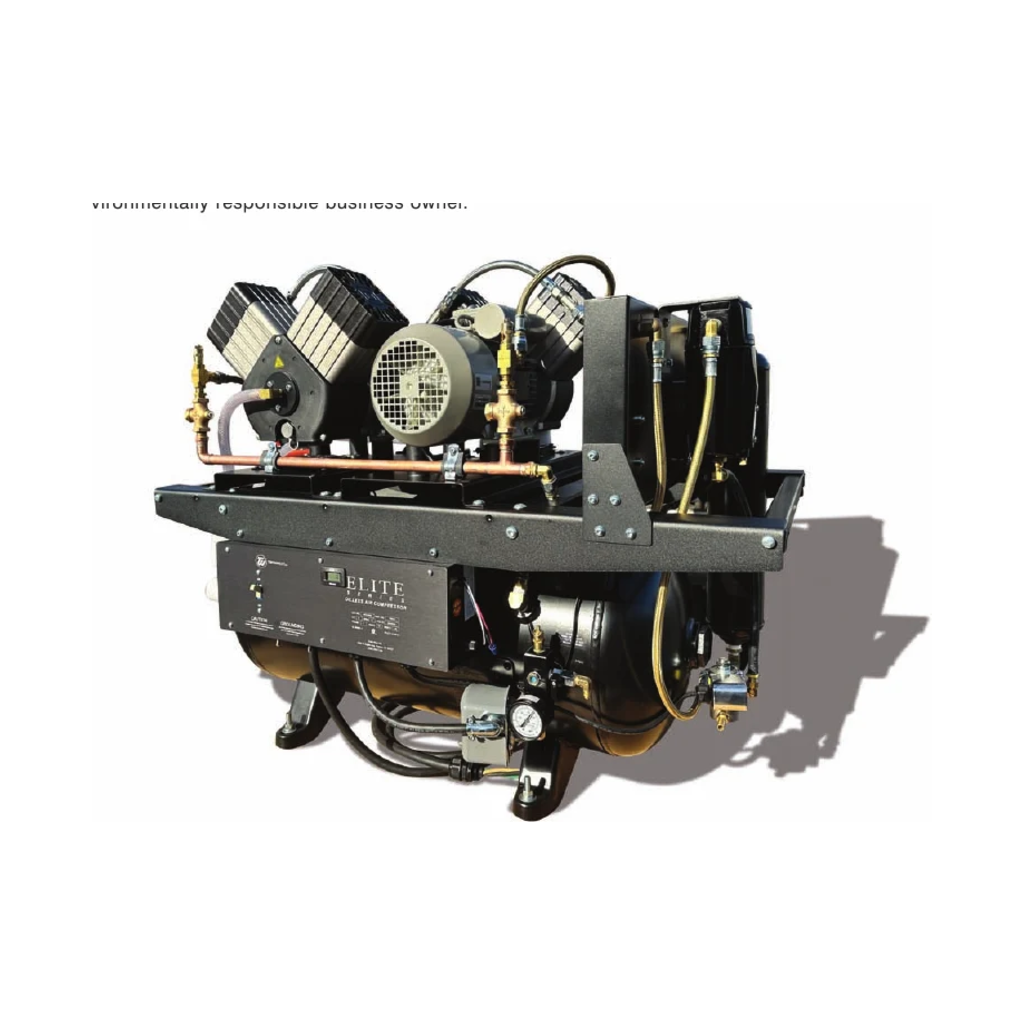

Tech West Elite ACO2S2 Oilless Air Compressor (2-3 users)

Brand
Tech West
Quote includes
Configuration review
Support
Installation and service options

Build your equipment quote

Add this item to your list.

Choose a configuration and quantity. You can keep shopping and send the full list together when you are ready.

  • Configuration reviewed before we quote
  • Installation and service options available
  • No online payment or purchase commitment
View your quote list
Product overview & specifications The ACO2S2 is the single-head configuration in Tech West's Elite Series, rated for 2 to 3 simultaneous users. It is the right size for a smaller practice that still wants...

The ACO2S2 is the single-head configuration in Tech West's Elite Series, rated for 2 to 3 simultaneous users. It is the right size for a smaller practice that still wants an integrated desiccant drying system rather than a basic compressor.

This model

  • Simultaneous users: 2 to 3
  • Compressor heads: 1
  • Horsepower: 1.5
  • Output: 5.5 CFM
  • Tank: 10 gallons
  • Voltage: 208/230V

Why the Elite Series

  • Delivers 100 percent clean, dry air with energy-efficient, high-efficiency motors
  • Desiccant drying tanks engineered to reach ultra-low dew points around -40F
  • Quiet, vibration-free operation
  • Proudly built in the USA

User rating means simultaneous demand. It is based on how many operatories may need air at the same time, not the total number of rooms. We confirm voltage, ventilation, mechanical room space and future growth before quoting.

Other Elite Series models

If this size is not the right fit, here is the rest of the line.

Model Users Heads HP CFM Tank gallons Voltage
ACO2S2 2-3 1 1.5 5.5 10 208/230
ACO4D2 5-7 2 3 11 20 208/230
ACO6T2 8-10 3 4.5 16.5 30 208/230

Warranty: Five years or 3,500 hours on the motor and two years on other components.
