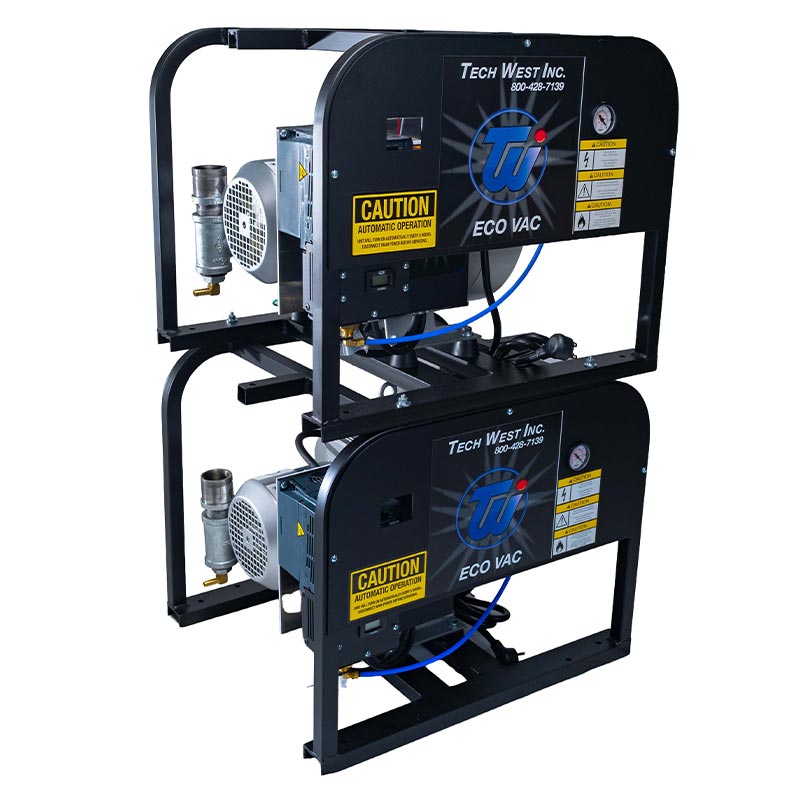

Tech West EcoVac dual head dry vacuum on equipment rack

Tech West

Tech West EcoVac VPD10D2 Dry Vacuum System (10-14 users)

Brand
Tech West
Manufacturer part number
VPD10D2
Quote includes
Configuration review
Support
Installation and service options

Build your equipment quote

Add this item to your list.

Choose a configuration and quantity. You can keep shopping and send the full list together when you are ready.

  • Configuration reviewed before we quote
  • Installation and service options available
  • No online payment or purchase commitment
View your quote list
Product overview & specifications The VPD10D2 is the dual-head EcoVac rated for 10 to 14 simultaneous users at 90 CFM. This is the workhorse size for larger practices, and the only difference between the...

The VPD10D2 is the dual-head EcoVac rated for 10 to 14 simultaneous users at 90 CFM. This is the workhorse size for larger practices, and the only difference between the three versions is the tank.

This model

  • Simultaneous users: 10 to 14
  • Heads: 2
  • Horsepower: 4
  • Airflow: 90 CFM at 8 in. Hg
  • Voltage: 208/230V

Choose the 30 gallon tank, the 14 gallon tank when mechanical room height or footprint is limited, or no tank when one is already in place.

Why the EcoVac

  • Water-free vacuum performance with smart VFD technology
  • Zero water usage and no filters, fluids or maintenance headaches
  • Saves enough water each month to fill two swimming pools
  • Saves over 50 percent on electricity costs compared with similar vacuum pumps
  • Maintenance free, with no traps to clear and no fluids to manage
  • Requires no new piping to switch from a wet to a dry vacuum system
  • Proudly built in the USA

User rating means simultaneous demand. It is based on how many operatories may be drawing suction at the same time, not the total number of rooms. Electrical service, available space and existing plumbing all affect the final choice.

Other EcoVac models

Model Users Heads HP CFM @ 8 in. Hg Tank gallons Voltage
VPD2S2 2-3 1 2 20 14 208/230
VPD2S2-NT 2-3 1 2 20 No tank 208/230
VPD4D2 4-6 2 4 40 14 208/230
VPD5S2 5-7 1 2 45 14 208/230
VPD5S2-NT 5-7 1 2 45 No tank 208/230
VPD10D2 10-14 2 4 90 30 208/230
VPD10D2-14 10-14 2 4 90 14 208/230
VPD10D2-NT 10-14 2 4 90 No tank 208/230
VPD15T2 15-21 3 6 110 40 208/230

Warranty: Five years or 5,000 hours on the motor and two years on other components.
