ADS Dental System

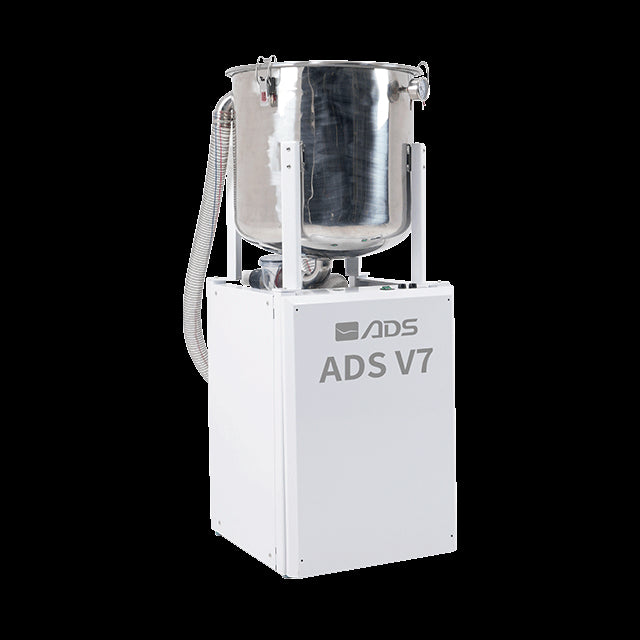

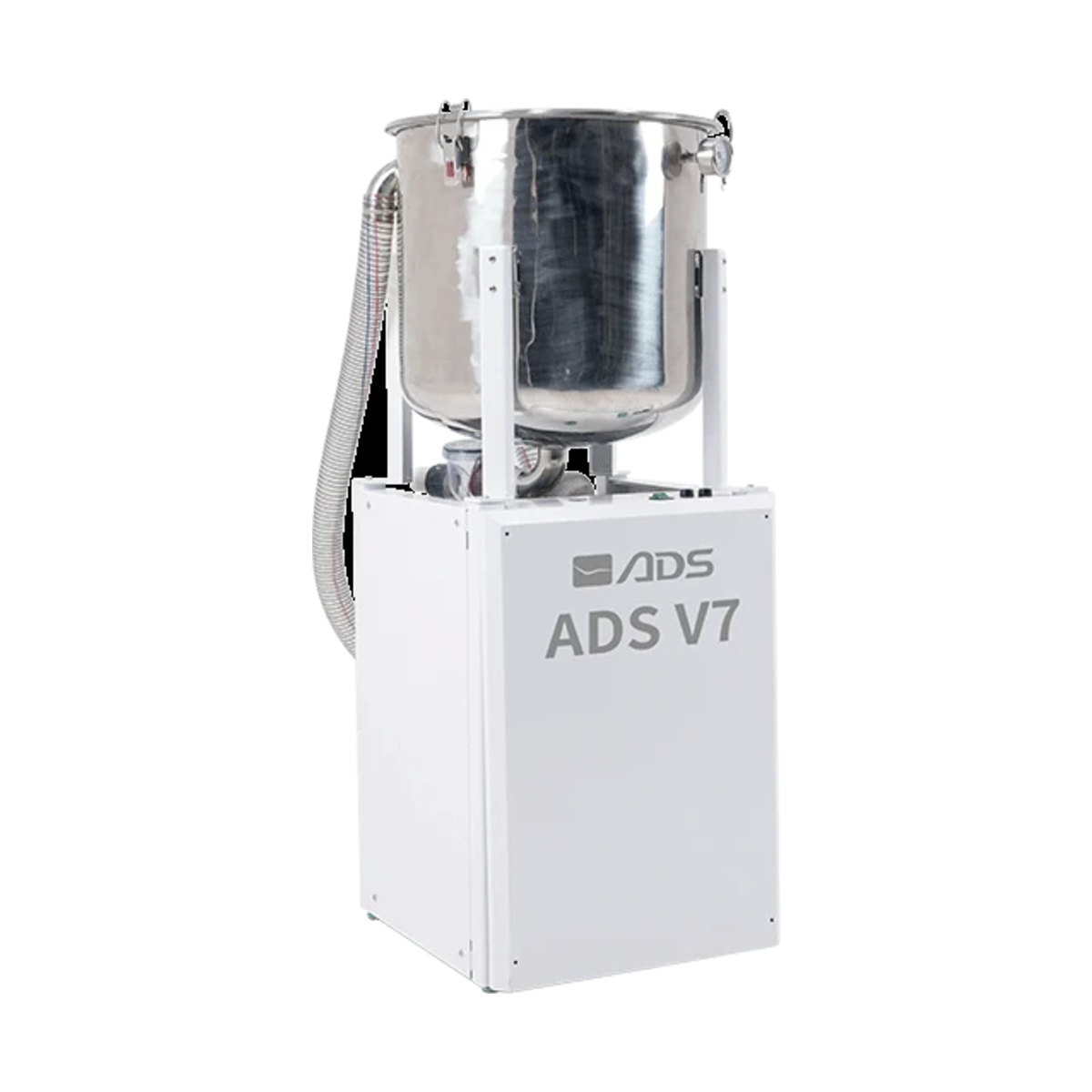

ADS V7 Dry Vacuum System
- Brand
- ADS Dental System
- Quote includes
- Configuration review
- Support
- Installation and service options
Build your equipment quote
Add this item to your list.
Choose a configuration and quantity. You can keep shopping and send the full list together when you are ready.
- Configuration reviewed before we quote
- Installation and service options available
- No online payment or purchase commitment
Product overview & specifications Mid-size dry vacuum system from ADS. Dry systems run without a continuous water supply, which keeps water use and drain load down compared with a wet ring pump.Key featuresStable, continuous...
Mid-size dry vacuum system from ADS. Dry systems run without a continuous water supply, which keeps water use and drain load down compared with a wet ring pump.
Key features
- Stable, continuous suction and airflow
- Slim cabinet designed to save mechanical room floor space
- Nominal voltage: AC 110V plus or minus 22V
- Nominal frequency: 60 Hz plus or minus 1 Hz
- Water pressure: 29 to 58 psi
- Input air pressure: 72.5 to 101.5 psi with at least 50 L/min airflow
- Operating range: 5 to 40 degrees C, relative humidity 80 percent or less
Planning note: Vacuum sizing depends on how many operatories run at once, not just how many chairs you have. We confirm the right model, piping and drain arrangement before we quote.
Need help before choosing?
We can look at the room, not just the equipment.
For mechanical rooms, replacements, imaging systems and complete offices, send the office address, space details, utilities and existing equipment. We will review it before replying.
