ADS Dental System

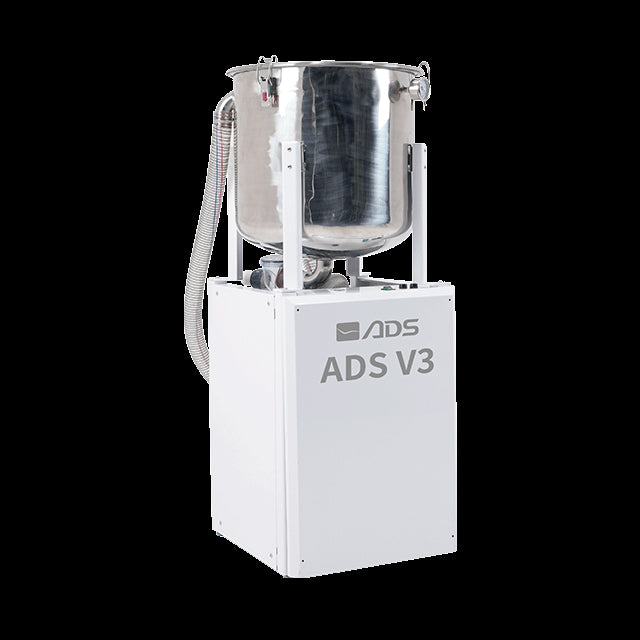

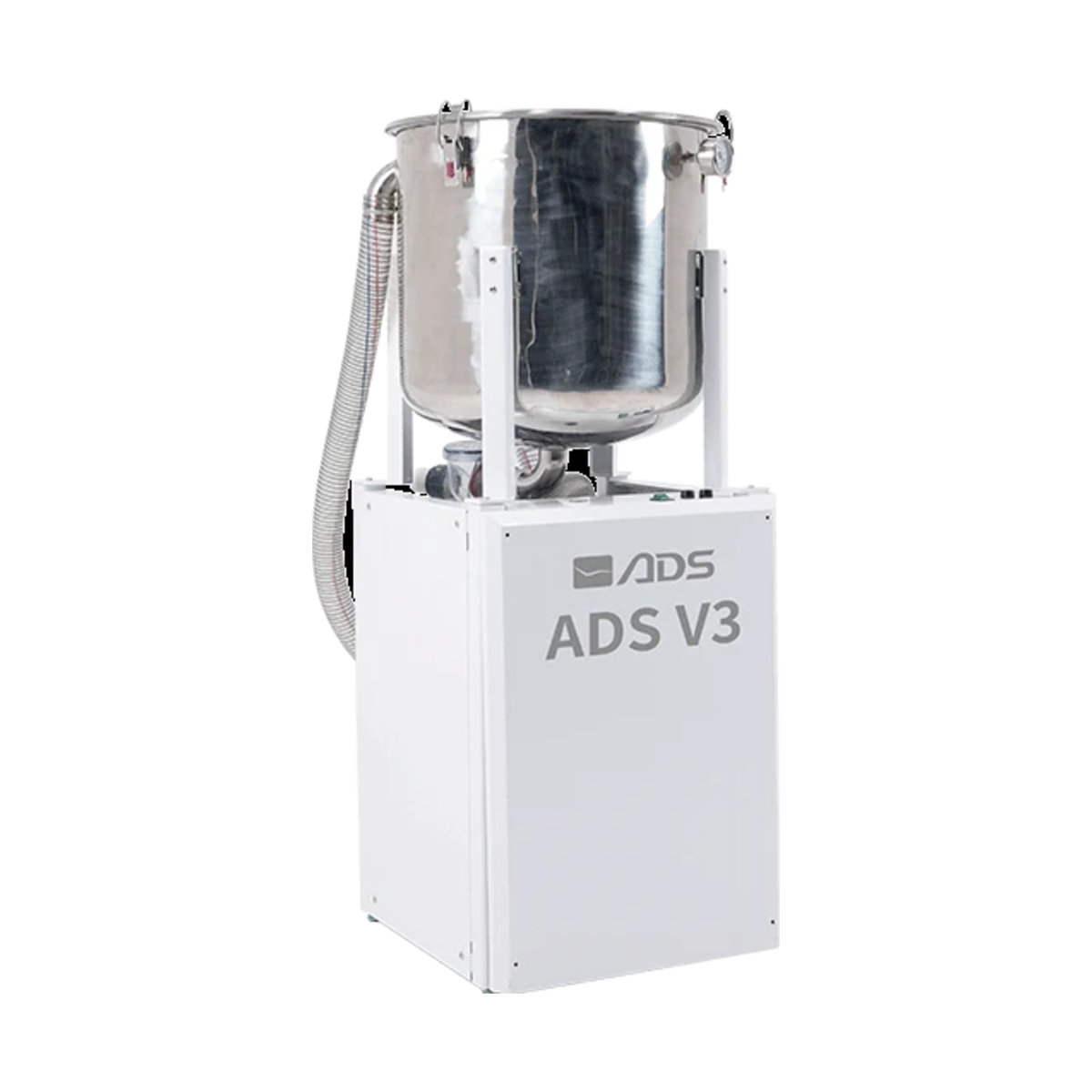

ADS V3 Dry Vacuum System
- Brand
- ADS Dental System
- Quote includes
- Configuration review
- Support
- Installation and service options
Build your equipment quote
Add this item to your list.
Choose a configuration and quantity. You can keep shopping and send the full list together when you are ready.
- Configuration reviewed before we quote
- Installation and service options available
- No online payment or purchase commitment
Product overview & specifications Dry vacuum system from ADS, the smallest in the V series. Dry systems run without a continuous water supply, which keeps water use and drain load down compared with a...
Dry vacuum system from ADS, the smallest in the V series. Dry systems run without a continuous water supply, which keeps water use and drain load down compared with a wet ring pump.
Key features
- Stable, continuous suction and airflow
- Slim cabinet designed to save mechanical room floor space
- Nominal voltage: AC 110V plus or minus 22V
- Nominal frequency: 60 Hz plus or minus 1 Hz
- Water pressure: 29 to 58 psi
- Input air pressure: 72.5 to 101.5 psi with at least 50 L/min airflow
- Operating range: 5 to 40 degrees C, relative humidity 80 percent or less
Planning note: Vacuum sizing depends on how many operatories run at once, not just how many chairs you have. We confirm the right model, piping and drain arrangement before we quote.
