ADS AT800N Air Compressor

ADS Dental System

ADS AT800N Air Compressor

Brand
ADS Dental System
Quote includes
Configuration review
Support
Installation and service options

Build your equipment quote

Add this item to your list.

Choose a configuration and quantity. You can keep shopping and send the full list together when you are ready.

  • Configuration reviewed before we quote
  • Installation and service options available
  • No online payment or purchase commitment
View your quote list
Product overview & specifications Oil-free dental air compressor from the ADS N series, sized for an eight-chair office.SpecificationsMaximum users: 8Power: 4 hp / 3 kWAir tank volume: 29 gal (110 L)Maximum pressure: 115 psi...

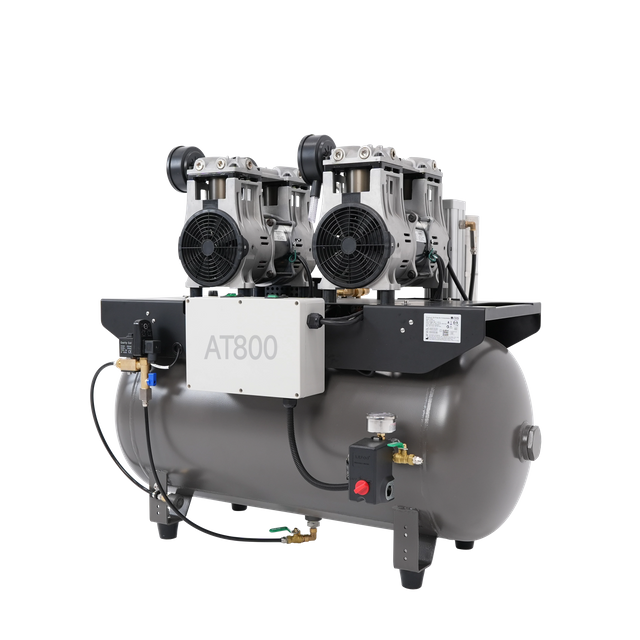

Oil-free dental air compressor from the ADS N series, sized for an eight-chair office.

Specifications

  • Maximum users: 8
  • Power: 4 hp / 3 kW
  • Air tank volume: 29 gal (110 L)
  • Maximum pressure: 115 psi (0.8 MPa)
  • Power supply: 220V AC, 50 to 60 Hz
  • Rated current: 15A or less
  • Noise: 80 dB
  • Overall dimensions: 39.3 x 29.0 x 34.6 in

Planning note: This model runs on 220V. Mechanical room space, electrical service, delivery and installation are confirmed before we quote.
