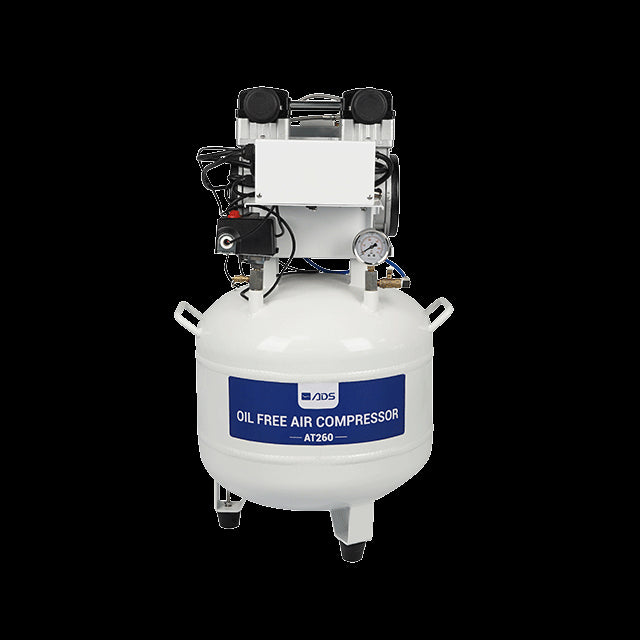

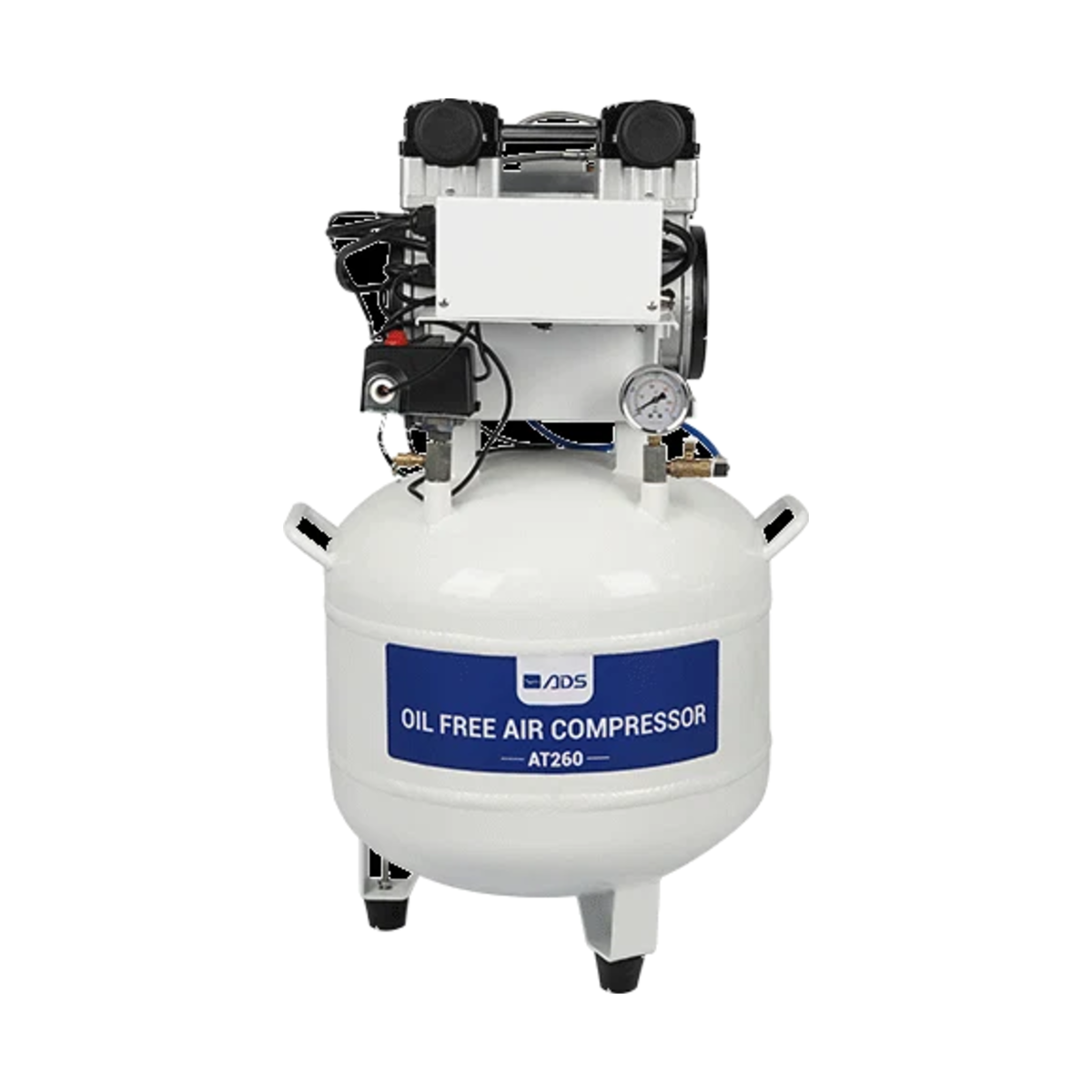

ADS AT260 Air Compressor

ADS Dental System

ADS AT260 Air Compressor

Brand
ADS Dental System
Quote includes
Configuration review
Support
Installation and service options

Build your equipment quote

Add this item to your list.

Choose a configuration and quantity. You can keep shopping and send the full list together when you are ready.

  • Configuration reviewed before we quote
  • Installation and service options available
  • No online payment or purchase commitment
View your quote list
Product overview & specifications Entry-size oil-free dental air compressor from ADS, sized for a two-chair office. Produces dry, oil-free air with continuous flow to the operatories.SpecificationsMaximum users: 2Power: 1 hpAir tank volume: 15 gal...

Entry-size oil-free dental air compressor from ADS, sized for a two-chair office. Produces dry, oil-free air with continuous flow to the operatories.

Specifications

  • Maximum users: 2
  • Power: 1 hp
  • Air tank volume: 15 gal (56 L)
  • Exhaust volume: 3 CFM @ 80 psi
  • On/off pressure: 72.5 / 116 psi
  • Power supply: 110V AC, 60 Hz
  • Maximum current: 7A
  • Noise: 63 dB
  • Overall dimensions: 20.3 x 22.8 x 33.5 in

Planning note: Final sizing depends on operatory count, simultaneous use and the mechanical room layout. Electrical requirements, delivery and installation are confirmed before we quote.
