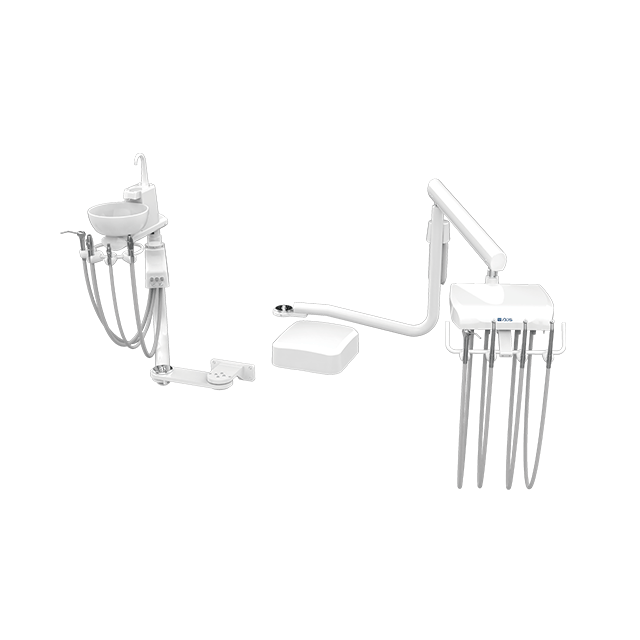

The ADS Classic 201 is a swing-style delivery system built around accessible controls, serviceable utilities and a clean clinical workflow.

Key features

• Swing-style Classic control head with three automatic handpiece positions
• Swing-mounted cuspidor and assistant vacuum package
• Two HVE valves, one saliva ejector and one assistant syringe
• City or bottled water system, five-foot umbilical and filtered junction box
• Swing-mounted LED light with sensor control
• Electrical: AC 110V ±22V, 60 Hz
• Water pressure: 29 to 58 psi
• Input air pressure: 72.5 to 101.5 psi with at least 50 L/min airflow

Planning note: Final mounting, handpiece positions, utility requirements, accessories, delivery and installation are confirmed before we quote.
